YAMAHA YXZ1000R / SIDEWINDER / VIPER / NYTRO VALVE SPRING & RETAINER KITS
Designed for high rpm, BC valve springs by PAC Racing are wound from only the highest grade, super clean, chrome silicone alloy and feature proprietary processing procedures for consistent pressures. BC H13 tool steel retainers are CNC machined from round bar to exacting tolerances and will deliver unprecedented wear resistance for the life of the engine. |
 |
|
Kit # |
|
Spring # |
|
Retainer # |
|
Seat # |
|
Description |
|
Buy Kit |
|
Status |
|
|
| BC0950 |
BC1950 |
BC2905 |
BC2915 |
Dual spring, steel retainer, steel seat for shim in retainer (OEM setup). |
 |
In-Stock |
|
| BC0950B |
BC1950 |
BC2905B |
BC2915 |
Dual spring, steel retainer, steel seat for shim in bucket (aftermarket bucket setup). |
|
In-Stock |
|
|
| Spring Pressure: BC1950 Seat: 1.265" @ 92# / Open: 0.850" @ 215# / CB: 0.760" |
|
|
|
YAMAHA YXZ1000R / TEXTRON WILDCAT Valve Shim Adjusters
BC valve lash adjusters are CNC machined from S7 tool steel for the ultimate in wear resistance. Each shim kit includes 50 pieces in 10 varying thicknesses starting at 1.80mm thick all the way up to 2.25mm thick in 0.05mm increments. 5 shims in each thickness.
|
 |
|
|
Part # |
|
Description # |
|
Buy Kit |
|
Status |
|
|
| BC3895 |
7.48mm Lash Adjuster Shim Kit (Yamaha YXZ/Textron Wildcat XX - 1.80mm - 2.25mm / 5pcs each size) |
|
EMAIL |
|
|
|
|
Yamaha YXZ1000R / Textron Wildcat XX Valves
BC valves are one piece design with a friction welded Stellite tip for the best possible performance. Every valve is made from premium grade, heat resistant stainless steel material to insure reliability with high boost and/or high rpm applications. The undercut stem above the head area not only reduces overall weight for extended rpm potential, but also significantly improves air/fuel flow in and out of the combustion chamber. Every valve is fully machined and features a swirl polished finish under the head. |
 |
|
|
Part # |
|
Description |
|
Buy Now |
|
Status |
|
|
| BC3850 |
Stainless Steel - 31.0mm Intake (standard head diameter) - Set/6 |
|
In-Stock |
|
| BC3851 |
Stainless Steel - 26.0mm Exhaust (standard head diameter) - Set/6 |
|
In-Stock |
|
| BC3853-N |
Inconel - 27.0mm Exhaust (+1 head diameter) - Set/6 |
|
In-Stock |
|
|
|

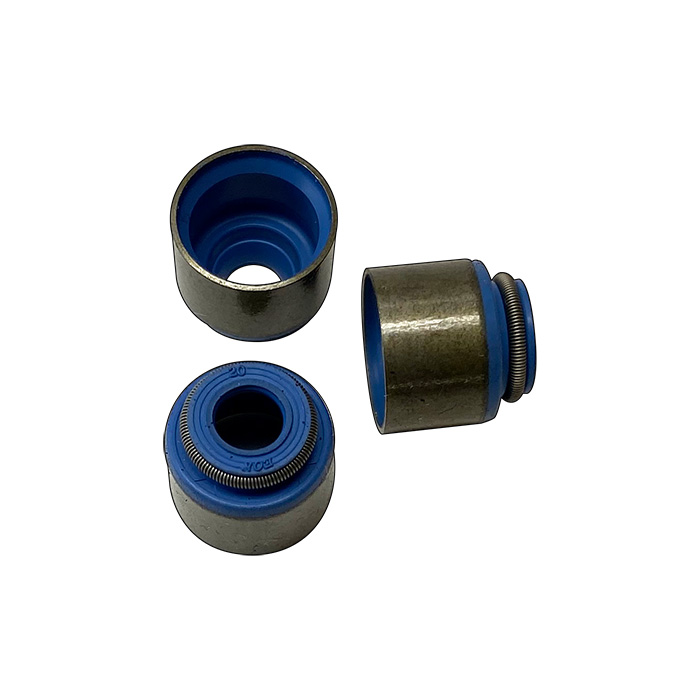

YAMAHA 998 VALVE STEM SEALS
BC valve stem seals allow a carefully defined amount of engine oil from the cylinder head into the combustion chamber to lubricate the rotating valve stem in the valve guide. BC valve stem seals are produced from high performance Viton material and feature a steel alloy case for increased part life and lower wear. |
 |
|
|
Part # |
|
Description |
|
Buy Now |
|
Status |
|
|
| BC3995 |
Designed for standard valve guides, 4.5mm valve stem diameter (Yamaha YXZ, SideWinder, Viper) set/12 |
|
NA |
|
|
|
|
YAMAHA YXZ / 998 SERIES CAM BUCKETS (SHIM UNDER)
Due to Yamaha's notorious bucket wear, BC only offers cam buckets in DLC coating. Features "shim in bucket" design that requires BC0950B valve spring/retainer kit. Made from aerospace grade, 4140 chromoly steel alloy and completely CNC machined from heat-treated billet round bar. Heavy-duty wall thickness eliminates distortion and cam face depression, while reducing overall weight from non-critical stress areas. Nitrided and polished to a surface hardness of 60RC for minimal wear. Provides lower friction with cam lobes and cylinder head lifter bores for improved durability. |
 |
|
|
Part # |
|
Description # |
|
Buy Kit |
|
Status |
|
|
| BC8885DLC |
CAM BUCKET FOLLOWERS w/DLC COATING – Yamaha YXZ / 998 - Shim in bucket design |
|
In-Stock |
|
|
|
