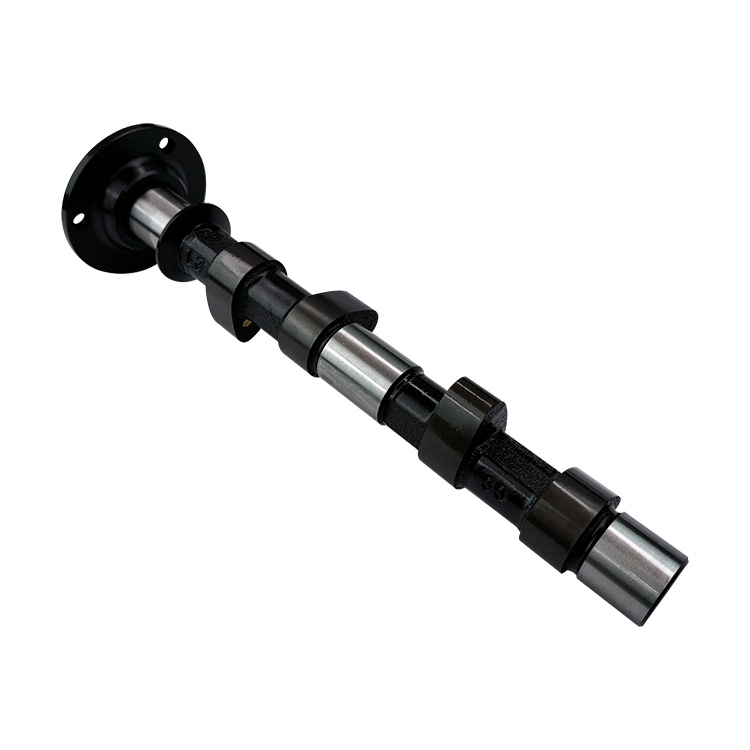

VW TYPE 1 & 3 AIR COOLED CAMSHAFT
The Volkswagen Beetle (officially the Volkswagen Type 1) is a classic car that needs no introduction. With over 21 million units produced and sold globally from 1938 to 2003, the Beetle was extremely popular in the US and Europe during the 1950s and 1960s. However, with increasing competition and demands for better safety and emissions, the Beetle's sales declined in the early 1970s. Despite its outdated design, the Beetle still has a large enthusiast market. Fans love the simplicity and aesthetics of the car, and enjoy customizing their Beetles to extract more performance out of the air-cooled flat-4 engine. The Volkswagen air-cooled engine is an air-cooled, gasoline-fuelled, boxer engine with four horizontally opposed cast-iron cylinders, cast aluminum alloy cylinder heads and pistons, magnesium-alloy crankcase, and forged steel crankshaft and connecting rods. There are two distinct families/variations of the aircooled engine namely Type 1 and Type 4. The Type 3 engine is a variation of the Type 1 engine with pancake cooling arrangement. |
 |
|
Stage |
|
Description |
|
Part# |
|
Adv. Dur. |
|
Dur @ .050 |
|
Lift (in) |
|
Lift (mm) |
|
Kit# |
|
Cam Card |
|
Dyno |
|
Shop |
|
Status |
|
|
 |
Street/Strip - 3/4 Race Spec
All purpose street use with minimal mods, 1500-5500 rpm |
BC0721 |
298°/298° |
258°/258° |
.382"/.382" |
.534"/.534" |
CALL |
 |
|
 |
In-Stock |
|
|
Full Track Spec
For larger CID builds with mods, 2000-6000 rpm |
BC0722 |
310°/310° |
266°/266° |
.385"/.385" |
.539"/.539" |
CALL |
|
|
|
In-Stock |
|
|
Turbo Specification
Designed for boosted engines with wide LSA, 2000-6000 rpm |
BC0723 |
294°/284° |
254°/248° |
.397"/.392" |
.555"/.548" |
CALL |
|
|
|
In-Stock |
|
|
 |
USDM VW (Type 1) |
Stock |
252°/256° |
224°/228° |
.297"/.285" |
|
|
|
|
|
| Valve Lift Factored w/1.4:1 Rocker Ratio |
|
|
